Meeting the Needs of
Your Mission Critical Systems

The miniMUST 1090 series is a scaleable, hot-swappable true on-line double conversion modular uninterruptible power supply (UPS) system.

It can be configured as (N+X) to meet the most demanding loads, such as: Data Centers; Servers racks; Industrial automations and other mission critical loads where redundancy; flexibility and reliability are important.

Power module is designed with four capacities. 10PMX/ 15PMX/ 20PMX/ 25PMX with unity output power factor (PF1), thanks to the State of the Art technology, power module has higher capacity and more efficient than others in the completion, it is fully compatible with down-stream loads or devices with it’s unity ouput power factor design, thus no oversizing of UPS is needed.

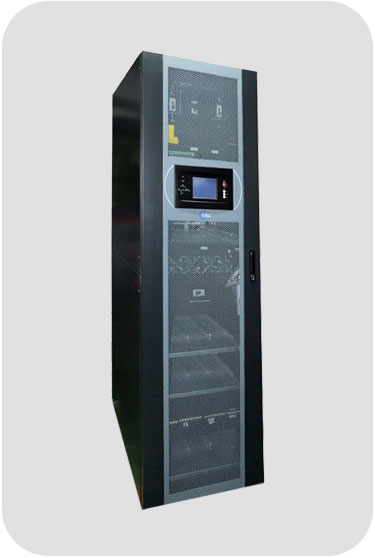

The MUST 400 series is an uninteruptible power supply, three phase input/output, with its module capacity ranging from 10KVA, 15KVA & 20KVA (model: 10PM, 15PM, 20PM). It is designed to cover power rating from 10KVA to 400KVA. and is designed to deliver the best combination of reliability, functionality, hot swapping and flexiblity at a competitve price.

The MUST 400 series modular UPS combines the lastest three-level IGBT technology with DSP control arithmetic. Along with high input power factor, low THDi and high efficiency, this product achieves very high load adaptability.

The modular UPS ensures reliable and trouble free operation for the critical load. The MUST 400 series can be easily expanded by adding power modules to the system to reach 200KVA in a single frame. It is possible to connect two frames in parallel to reach maximum 400KVA power.

The MUST 900 series is an uninteruptible power supply, three phase input/output, with its single module capacity 30KVA (model: 30PM). The modular UPS systems are designed to cover a wide range of power ratings from 30KVA to 900KVA and is designed to deliver the best combination of reliability, functionality, hot swapping and flexiblity at a competitve price.

The MUST 900 series modular UPS combines the lastest three-level IGBT technology with DSP control arithmetic.
Along with high input power factor, low THDi and high efficiency, this product achieves very high load adaptability.

The modular UPS ensures reliable and trouble free operation for the critical load. The MUST 900 series can be easily expanded by adding power modules to the system to reach 300KVA in a single frame. It is possible to connect three frames in parallel to increase the capacity to a maximum of 900KVA power.

The MUST 1500 series is a true online double conversion uninteruptible power supply (UPS), three phase input/output with its single module capacity of 40KVA (40PM) and 50KVA (50PM). The modular UPS systems are designed to cover a wide range of power ratings from 40KVA to 1.5MVA and is designed to deliver the best combination of reliability, functionality, hot swapping and flexiblity UPS system for medium, large data centers, server & IT applications, and protect industrial automation processes, medical & healthcare equipment and many other loads where operations are critical in nature.

The MUST 1500 series modular UPS combines the lastest three-level IGBT technology with DSP control arithmetic.

Along with high input power factor, low THDi and high efficiency, this product can achieve very high load adaptability.
